Sliding System
Hebe-Schiebe

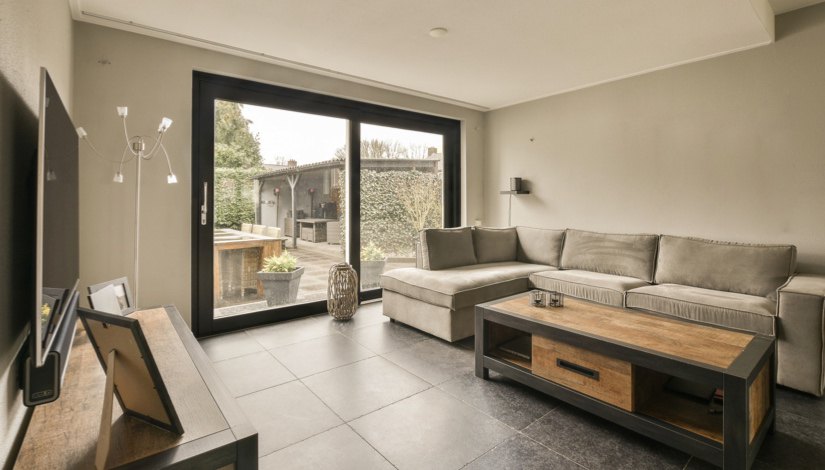

With its advantage of use in wide openings, it invites the view into your home in spaces such as balconies, terraces, verandas and winter gardens.
- 170 mm frame depth, 6-7 chamber structure
- 70 mm, 5-chamber door-sash profile
- Use of quality glass from 20–40 mm
- Class A profile wall thickness
- Concealed installation with no screws visible from outside
- Easy demountable transport and on-site installation
- Strength in wide openings with special bent reinforcement steel
Technical Details
Dimensions & performance values
Product Dimensions
- Frame Depth
- 170 mm
- Door Sash Depth
- 70 mm
- Chambers
- 5, 6, 7
- Profile Class
- Class A
- Seal System
- Inner/outer seal, brush gasket
- Seal Type / Colour
- EPDM / Black or grey
- Glass Thickness
- 4, 14, 20, 24, 28, 29, 34, 40 mm
Product Performance
- Profile U-value
- 1.5 W/m²·K
- Glass U-value
- 31 (-1,-6)
- Window U-value
- 2.57 W/m²·K
- Air Permeability
- 3
- Water Tightness
- 7A
- Wind Load Resistance
- C4/B5
- Acoustic Performance
- 31 [-1;-6] dB
Colour Options
PVC profile & laminate pattern options
PVC Profile Colours
Laminate Colour / Pattern Options
